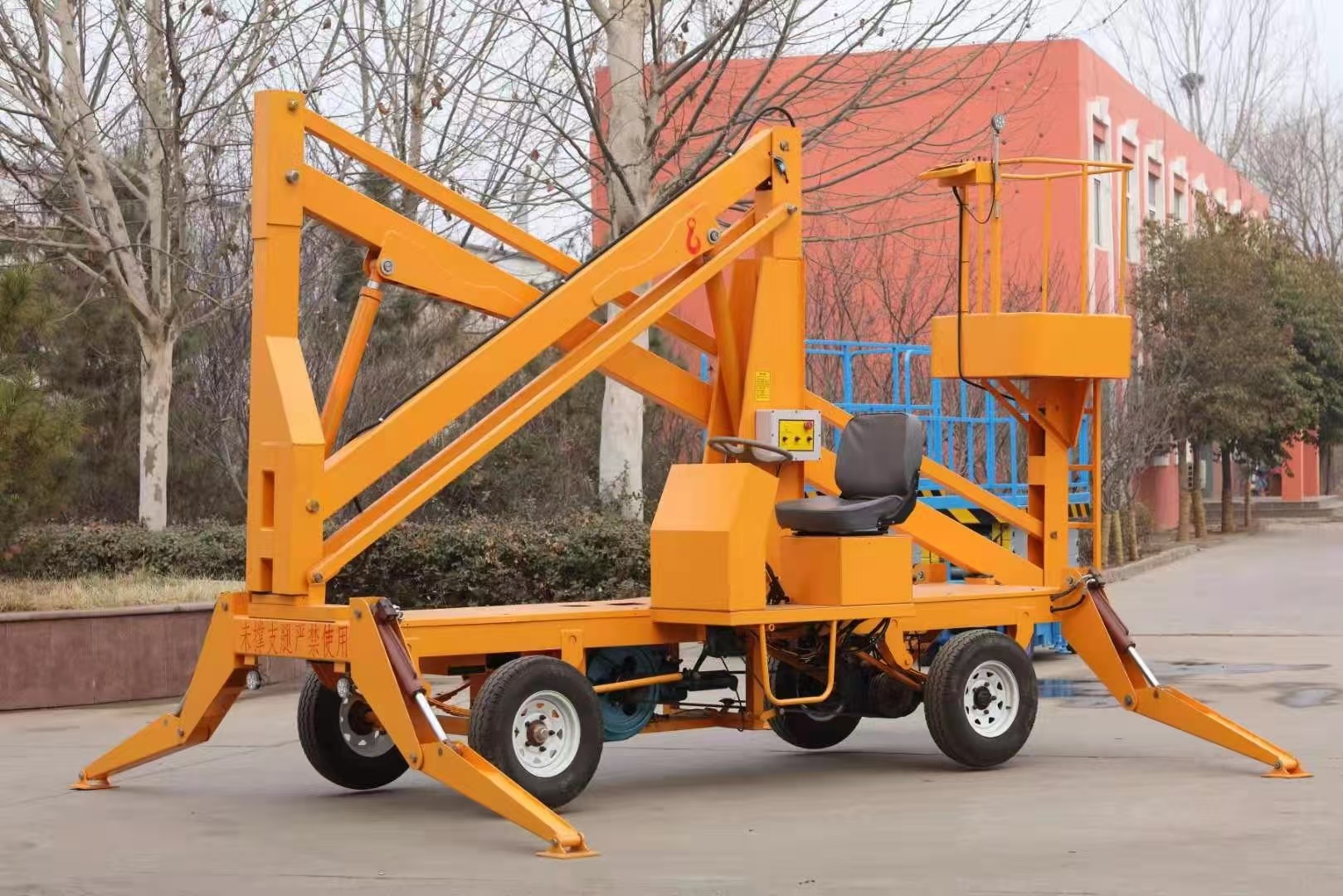

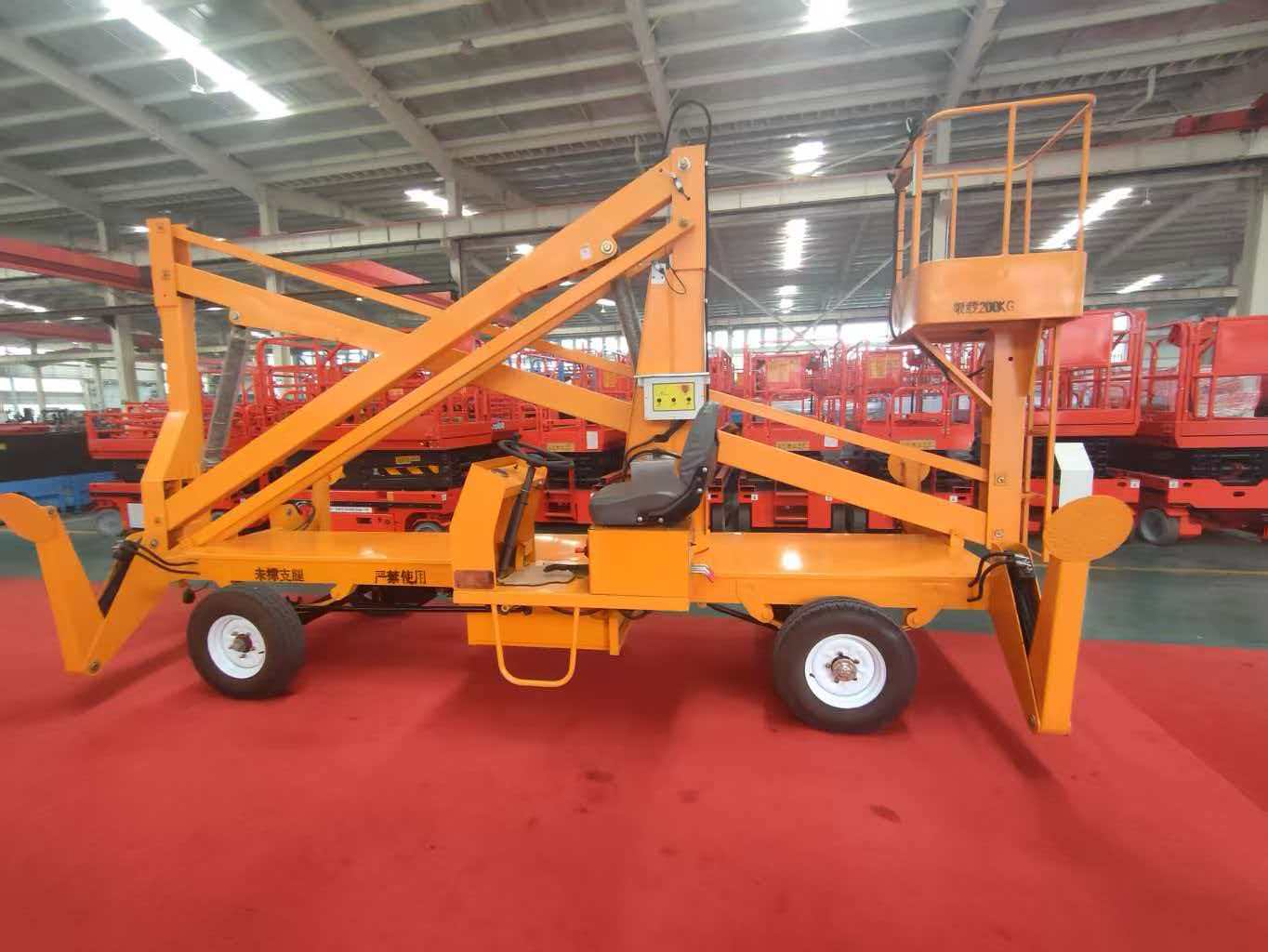

Self-propelled articulated boom lifts are available in diesel engine and electric power types. Equipped with high-power travel and lifting motors, they feature 24 ultra-large 250Ah maintenance-free lead-acid batteries for strong battery-powered performance, making them suitable for high-altitude operations in various complex terrains. The boom options include two or three sections, with working heights ranging from 10 to 32 meters. All models feature full-range self-propelled movement, articulated boom extension, zero tail swing rotation, and 355-degree non-continuous rotation, combined with an extended outreach radius to effectively bypass obstacles. They offer flexible operation and high efficiency. The equipment is fitted with wear-resistant solid tires that resist deformation and ensure long service life.
Type | HWSJQB-10 | HWSJQB-12 | HWSJQB-14 |
Platform Height(m) | 10 | 12 | 14 |
Working altitude(m) | 12 | 14 | 16 |
Lode | 200kg | 200kg | 200kg |
Table extension size（mm） | 800×750×1000 | 800×750×1000 | 800×750×1000 |
Guardrail height（mm） | 1000 | 1000 | 1000 |
Support method | Hydraulic outrigger | Hydraulic outrigger | Hydraulic outrigger |
Lifting speed(m/s） | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 |
Drive mode | battery | battery | battery |
Power source | battery | battery | battery |
battery | 75ah-12V | 75ah-12V | 75ah-12V |
Motor power | 3kw | 3kw | 3kw |
Working voltage/current | 380v/2.5a | 380v/2.5a | 380v/2.5a |
Control mode | Up and down two-way button control | Up and down two-way button control | Up and down two-way button control |
Working Pressure(MPs) | 10 | 10 | 10 |
Travel Speed | 15km/h | 15-30km/h | 15-30km/h |
Wind resistance grade | ≤5 | ≤6 | ≤6 |
Overall dimensions（mm） | 3600×2050×2950 | 5000×2050×3000 | 5550×2050×2900 |
Maximum working radius（m） | 3 | 3.5 | 4 |
Total weight（kg） | 1700 | 1800 | 1900 |
Professional oil cylinder | Professional pump station | Inflatable tires |
Whole machine spray coating | Adjustable descent | Capable of crossing obstacles |
Hydraulic support leg | Rising limit | Manganese steel structure
|
Large homework radius |
|
