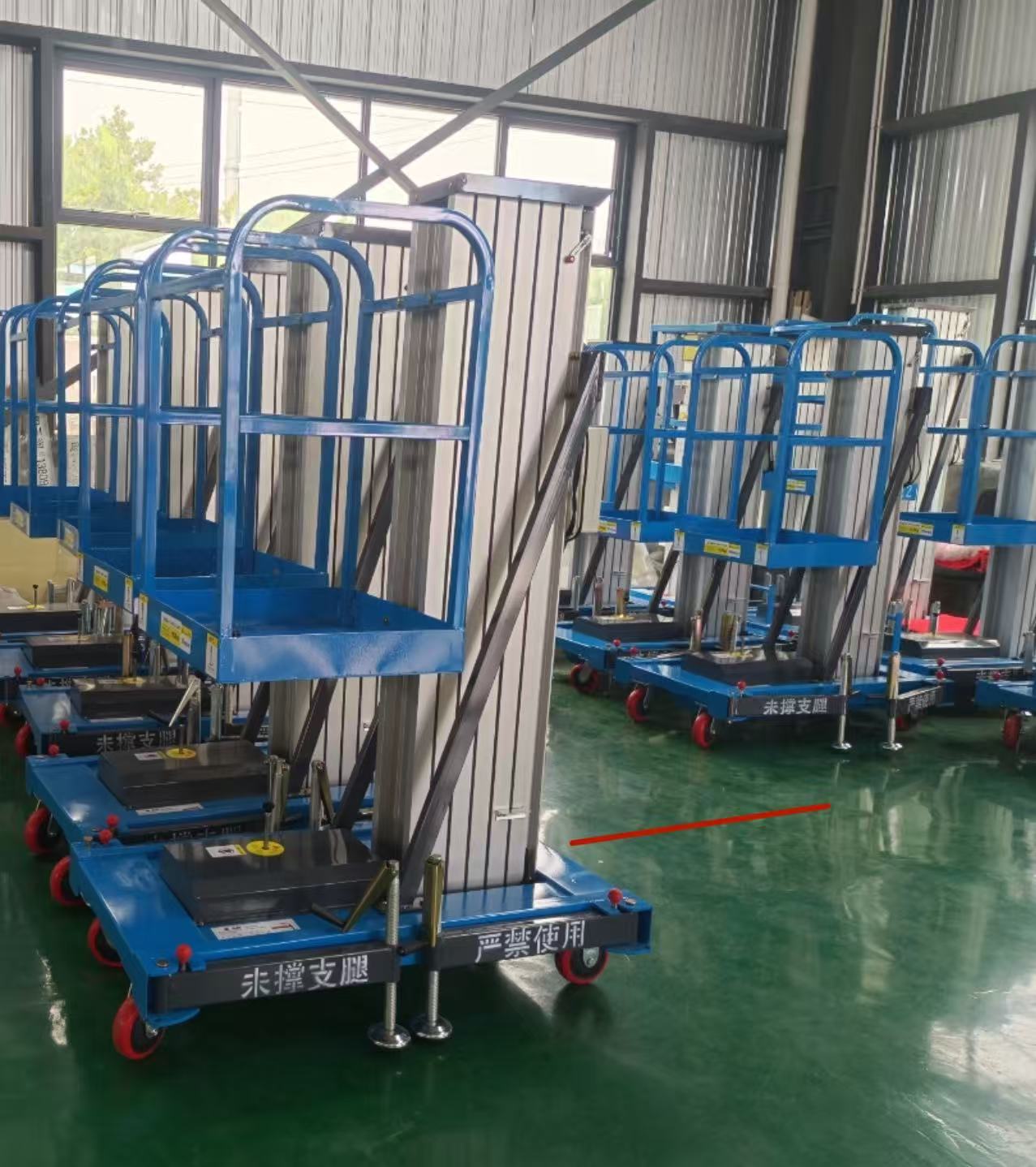

The aluminum alloy series utilizes high-strength, premium-quality aluminum alloy materials. The products are categorized by the number of masts into single, double, triple, quadruple, and sextuple columns, featuring an elegant design, smooth lifting, and reliable safety. Equipped with battery-assisted mobility, they can be easily moved and operated by a single person, effortlessly passing through elevator doors for convenient use, significantly enhancing work efficiency. They come with built-in safety chains and protective devices, along with a remote control box for lifting operations via remote controller. The equipment is fitted with polyurethane tires, offering low rolling resistance and floor-friendly movement. Widely used in factories, hotels, train stations, airports, theaters, exhibition halls, and other venues, they are the ideal tools for maintenance, welding, installation, construction, trimming, and other high-altitude tasks.

Product Parameters

Mast

Model

Platform  height(m)

Platform operation height(m)

Load capcity(kg)

Platform size (mm)

Supply voltage(V)

Power(Kw)

Weight(Kg)

Dimension(mm)

Single mast

HWGTWY4-100

4

6

100

600×600

AC220/50HZ

0.75

250

1280×800×1750



HWGTWY6-100

6

8

100

600×600

AC220/50HZ

0.75

280

1280×800×1900



HWGTWY8-100

8

10

100

600×600

AC220/50HZ

0.75

300

1280×800×1980



HWGTWY9-100

9

11

100

600×600

AC220/50HZ

1.1

320

1360×850×2000



HWGTWY10-100

10

12

100

600×600

AC220/50HZ

1.1

340

1360×900×2100

Double mast

HWGTWY4-200

4

6

200

1100×600

AC220/50HZ

1.5

380

1300×900×1750



HWGTWY6-200

6

8

200

1100×600

AC220/50HZ

1.5

420

1300×900×1900



HWGTWY8-200

8

10

200

1150×600

AC220/50HZ

1.5

550

1360×900×2000



HWGTWY10-200

10

12

200

1350×600

AC220/50HZ

1.5

600

1560×970×2000



HWGTWY12-200

12

14

200

1450×600

AC220/50HZ

1.5

700

1660×970×2000



HWGTWY14-200

14

16

200

1450×600

AC220/50HZ

1.5

800

1660×1100×2350

Three mast

HWGTWY10-320

10

12

200

1570×900

AC220/50HZ

2.2

900

2100×1250×2000



HWGTWY12-320

12

14

200

1570×900

AC220/50HZ

2.2

900

2100×1250×2000



HWGTWY14-320

14

16

200

1570×900

AC220/50HZ

2.2

1000

2100×1250×2350



HWGTWY16-320

16

18

200

1570×900

AC220/50HZ

2.2

1000

2100×1250×2650

Four mast

HWGTWY10-420

10

12

200

1470×850

AC220/50HZ

2.2

1100

2000×1250×1900



HWGTWY12-420

12

14

200

1570×900

AC220/50HZ

2.2

1200

2000×1250×2000



HWGTWY14-420

14

16

200

1570×900

AC220/50HZ

2.2

1300

2000×1250×2350



HWGTWY16-420

16

18

200

1570×900

AC220/50HZ

2.2

1500

2000×1250×2650



HWGTWY18-420

18

20

200

1570×900

AC220/50HZ

2.2

1700

2100×1350×2900

Six mast

HWGTWY18-260

18

20

150

1570×900

AC220/50HZ

2.2/1.1

1700

2500×1600×2450



HWGTWY20-620

20

22

150

1570×900

AC220/50HZ

2.2/1.1

1800

2500×1600×2450



HWGTWY22-620

22

24

150

1570×900

AC220/50HZ

2.2/1.1

1900

2500×1600×2700



HWGTWY24-620

24

26

150

1570×900

AC220/50HZ

2.2/1.1

2000

2500×1600×2850

Standard Configuration

Adjustable descent

Customizable fence

AC-DC motor

Jogging control for lifting and lowering

 Professional oil cylinder

Rising limit

Aluminum alloy structure

Professional pump station

Towable type

Non marking polyurethane wheel

Emergency descent system

Electric moving

Detail illustration
