The self-propelled telescopic lifting platform features a unique column structure made of high-quality, high-strength aluminum alloy. Polymer sliders are used between the long cylinders, ensuring tight alignment and smooth sliding. With its compact dimensions and flexible self-propelled mobility, it conforms to ergonomic principles and enhances stability during aerial operations. The exclusive patented uninterruptible power supply technology allows the platform to descend to a safe height even during power outages, eliminating safety hazards in high-altitude operations. It is an ideal tool for maintenance, welding, installation, construction, pruning, and other aerial tasks.
MODEL HWWPL1012 | |
Max working Height | 11.2m |
Max Platform Height | 9.2m |
Max Horizontal Reach | 3m |
Up and Over Height | 7.89m |
Guardrail height | 1.1m |

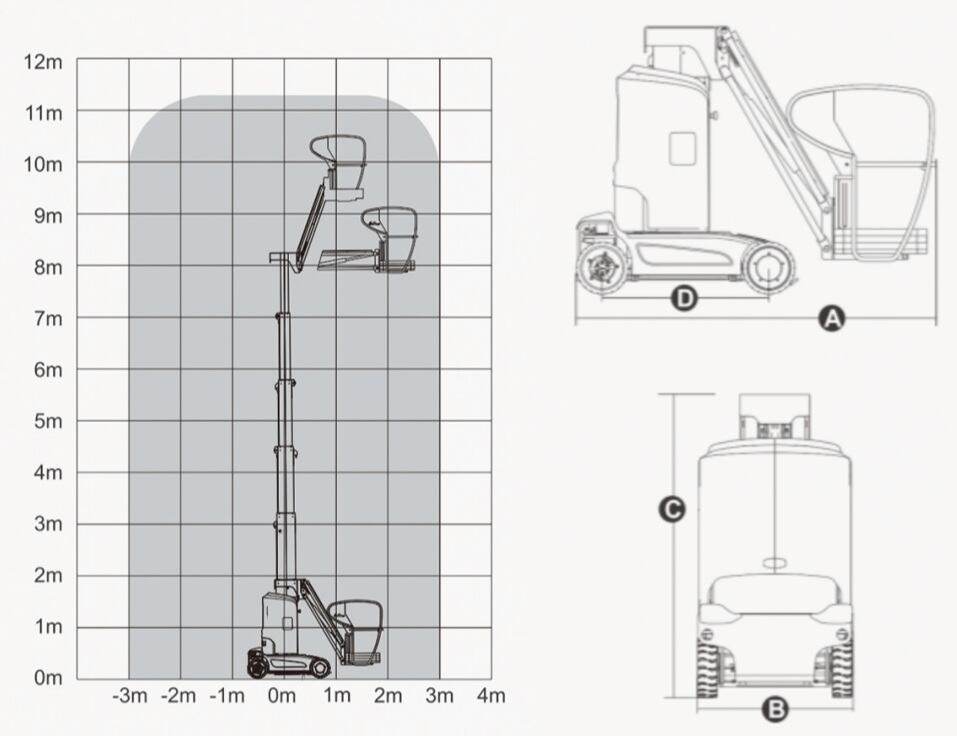

Overall Length A | 2.53m |
Overall Width B | 1.0m |
Overall Height(stowed)C | 1.99m |
Platform Dimension | 0.62×0.87m |
Ground Clearance(stowed) | 70mm |
Ground Clearance(Raised) | 19mm |
Wheelbase D | 1.22m |
Loading capacity | 200kg |
Occupants | 2 |
Turning Radius(inside/outside) | 0.23/1.65m |
Turret Rotation | 345° |
Jib Movement | 130° |
Travel Speed(stowed) | 4.5km/h |
Travel speed(Raised) | 0.5km/h |
Up/Down Speed | 42/38s |
Max.Working Slope | X-2.5°，Y-2.5° |
Tyres | 381×127mm |
Driving Motor | 24V/0.9kw |
Lifting Motor | 24V/3kw |
Battery | 24V/200AH |
Charger | 24V/30A |
Weight | 2950kg |
Adjustable descent | Customizable fence | Professional distribution box |
Upward adjustable | Professional oil cylinder | Rising limit |
Manganese steel structure | Professional pump station | Large homework radius
|
Whole machine spray coating | Vacuum Tire | Oil pipe explosion-proof systemg |
