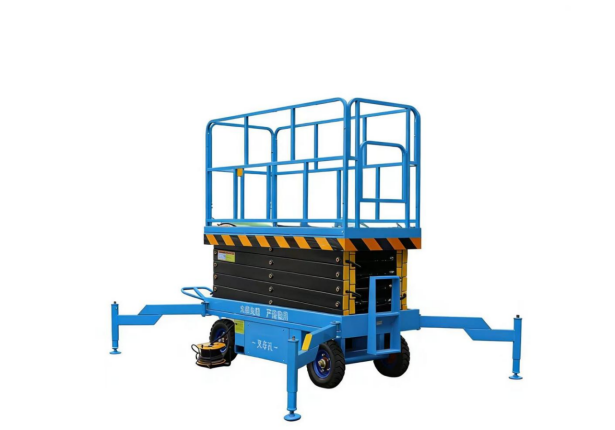

The mobile scissor lift platform features a four-wheel mobile scissor lift structure, offering flexible movement, stable lifting, convenient operation, a spacious work surface, strong load-bearing capacity, and the ability for multiple operators to work simultaneously. This product primarily uses electric hydraulic lifting power but can also be equipped with a manual hydraulic lifting device as needed. It supports diverse power options, including AC power, DC power, AC/DC dual power, or diesel engines. The mobility options include manual movement, assisted manual movement, and self-propelled modes. Equipped with dual limit switch protection, hydraulic hose anti-burst devices, leakage protection, overload safety protection, and emergency lowering in case of power failure, it ensures high safety standards, fully eliminating hazards during operation. The product is user-friendly, intelligent, efficient, easy to maintain, and boasts a long service life.

Product Parameters

Type

Platform

(mm)

Load

(kg)

Lifted height

(m)

Dimension(mm)

Weight(kg)

Guardrail

power

Pneumatic tire×4

HWSJY1.5-4

2100×1500

1500

4

2300×1720×1330

1500

1100

2.2KW/380V

500-8

HWSJY1.5-6

2100×1500

1500

6

2260×1750×1530

1780

1100

2.2KW/380V

500-8

HWSJY1.5-8

2100×1500

1500

8

2260×1700×1690

2050

1100

3.0KW/380V

500-8

HWSJY1.5-10

2150×1500

1500

10

2300×1700×1730

2250

1100

3.0KW/380V

500-8

HWSJY1.5-12

2550×1500

1500

12

2796×1762×1850

2900

1100

3.0KW/380V

600-9

HWSJY1.5-14

2850×1550

1500

14

3100×1850×1960

3350

1100

3.0KW/380v

700-9

Standard Configuration

Adjustable descent

Removable guardrail

Professional distribution box

Upward adjustable

Professional oil cylinder

Professional oil cylinder

Professional pump station

Whole machine spray coating

Solid tire
