The articulated self-propelled lifting work platform can be powered by diesel engines, electric motors, or a dual diesel-electric system. This product features self-propulsion, automatic outriggers, simple operation, user-friendly design, and a large working area. It is adaptable to various complex road conditions and can even overcome certain obstacles or perform multi-point elevated tasks from a single lifting position. Widely used in highways, docks, stadiums, residential properties, factory workshops, and municipal landscaping for extensive operations.
Product Details
Product Parameters
Project | HWGTBZ8 | HWGTBZ10 | HWGTBZ12 | HWGTBZ14 | HWGTBZ16 | HWGTBZ18 | HWGTBZ20 | HWGTBZ26.8 |
Size | ||||||||
Maximum working height | 10.5m | 12m | 14m | 16m | 18m | 20m | 22m | 28.8m |
Maximum platform height | 8.5m | 10m | 12m | 14m | 16m | 18m | 20m | 26.8m |
Maximum homework radius | 5.5m | 6m | 6.8m | 7.9m | 8.9m | 10.6m | 11.6m | 22m |
Maximum crossing height | 4.6m | 5.9m | 6.4m | 7.45m | 8.2m | 8.5m | 9.4m | 5.6m |
Maximum load capacity | 200kg | 200kg | 200kg | 200kg | 230kg | 230kg | 230kg | 300kg |
Diesel engine model | 490 | 490 | 490 | 490 | 490 | 490 | 490 | 490 |
Diesel engine power | 4CYL/35kw | 4CYL/35kw | 4CYL/35kw | 4CYL/35kw | 4CYL/35kw | 4CYL/35kw | 4CYL/35kw | 4CYL/36kw |
Driver type | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive4×4×2 |
Workbench size | 1.53×0.78m | 1.53×0.78m | 1.53×0.78m | 1.53×0.78m | 1.88×0.78m | 1.88×0.78m | 1.88×0.78m | 2.45×0.9m×1150 |
Maximum external dimensions | 5.55×1.65×2.26m | 5.8×1.65×2.26m | 6.4×1.78×2.3m | 7.03×1.78×2.3m | 7.4×2.0×2.5m | 8.7×2.2×2.5m | 9.2×2.2×2.5m | 11.69×2.52×2.92m |
The high of the workbench from the ground after contraction | 520mm | 480mm | 300mm | 220mm | 150mm | -100mm | -150mm | 420mm |
Wheelbase | 1907mm | 1907mm | 2017mm | 2017mm | 2100mm | 2540mm | 2540mm | 3200mm |
Track width | 1440mm | 1440mm | 1550mm | 1550mm | 1800mm | 1900mm | 1900mm | 2510mm |
Performance | ||||||||
Number of large arms | 3sections | 3sections | 3sections | 3sections | 3sections | 3sections | 3sections | 3sections |
Big arm deflection | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% |
Flying arm amplitude range | -60°/+70° | -60°/+70° | -60°/+70° | -60°/+70° | -60°/+80° | -60°/+80° | -60°/+80° | -60°/+80° |
Walking speed(in the closed stated) | 4.3km/h | 4.3km/h | 4km/h | 4km/h | 3.6km/h | 4.3km/h | 4.3km/h | 5km/h |
Working speed(raised state) | ＜0.8km/h | ＜0.8km/h | ＜0.8km/h | ＜0.8km/h | ＜0.8km/h | ＜0.8km/h | ＜0.8km/h | ＜0.8km/h |
Maximum allowable angle of chassis | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/5° |
Climbing ability | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 45% |
Drive steering form | Rear wheel drive front wheel steering | Rear wheel drive front wheel steering | Rear wheel drive front wheel steering | Rear wheel drive front wheel steering | Rear wheel drive front wheel steering | Rear wheel drive front wheel steering | Rear wheel drive front wheel steering | Rear wheel drive front wheel steering |
Minimum turning radius | Outer wheel 5.6m inner wheel2.9m | Outer wheel 4.2m inner wheel2.4m | Outer wheel 4.6m inner wheel2.5m | Outer wheel 4.6m inner wheel2.5m | Outer wheel 4.5m inner wheel2.0m | Outer wheel 5.6m inner wheel2.9m | Outer wheel 5.6m inner wheel2.9m | Outer wheel 6.5m inner wheel3.5m |
Rotation angle of turntable | 360°continuous | 360°continuous | 360°continuous | 360°continuous | 360°continuous | 360°continuous | 360°continuous | 360°continuous |
Platform rotation angle(optional function) | ±80° | ±80° | ±80° | ±80° | ±80° | ±80 | ±80 | ±80 |
Power | ||||||||
Control voltage | 24v | 24v | 24v | 24v | 24v | 24v | 24v | 24v |
Tyre | 28×9-15solid tire | 28×9-15solid tire | 28×9-15solid tire | 28×9-15solid tire | 28×9-15solid tire | 16×70-24solid | 16×70-24solid | 33×12D610solid |
Hydraulic oil tank capacity | 120L | 120L | 120L | 120L | 120L | 120L | 120L | 110L |
Fuel tank capacity | 30L | 30L | 30L | 30L | 30L | 30L | 30L | 30L |
Equipment self weight | 9670kg | 5500kg | 6090kg | 6090kg | 7720kg | 9670kg | 10200kg | 1534kg |
Standard Configuration
Engine driven | wheel side wise | 360°discontinuous rotation |
Fault diagnosis system | Emergency stop system | Emergency descent system |
Platform rotation angle±80° | Horn and buzzer safety warnings | Maximum allowable working inclination angle
|
Hydraulic leveling work platform | Emergency brake release | Tilt protection system |

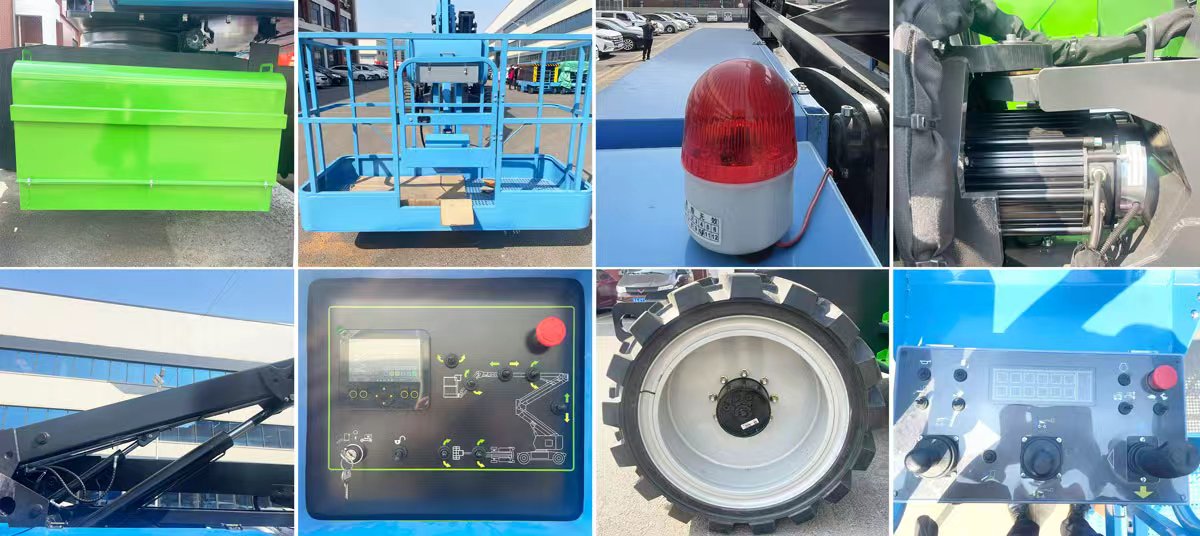

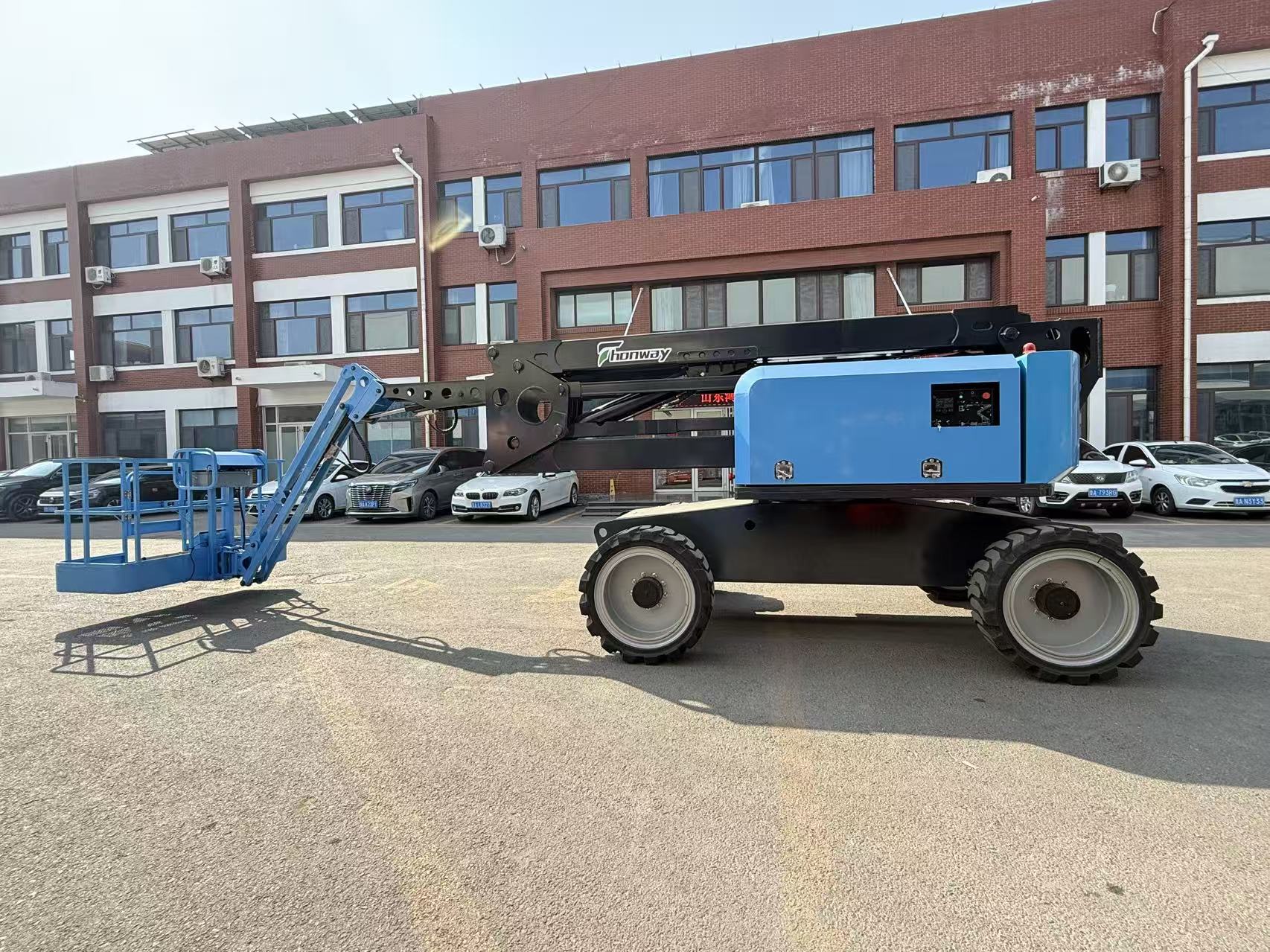

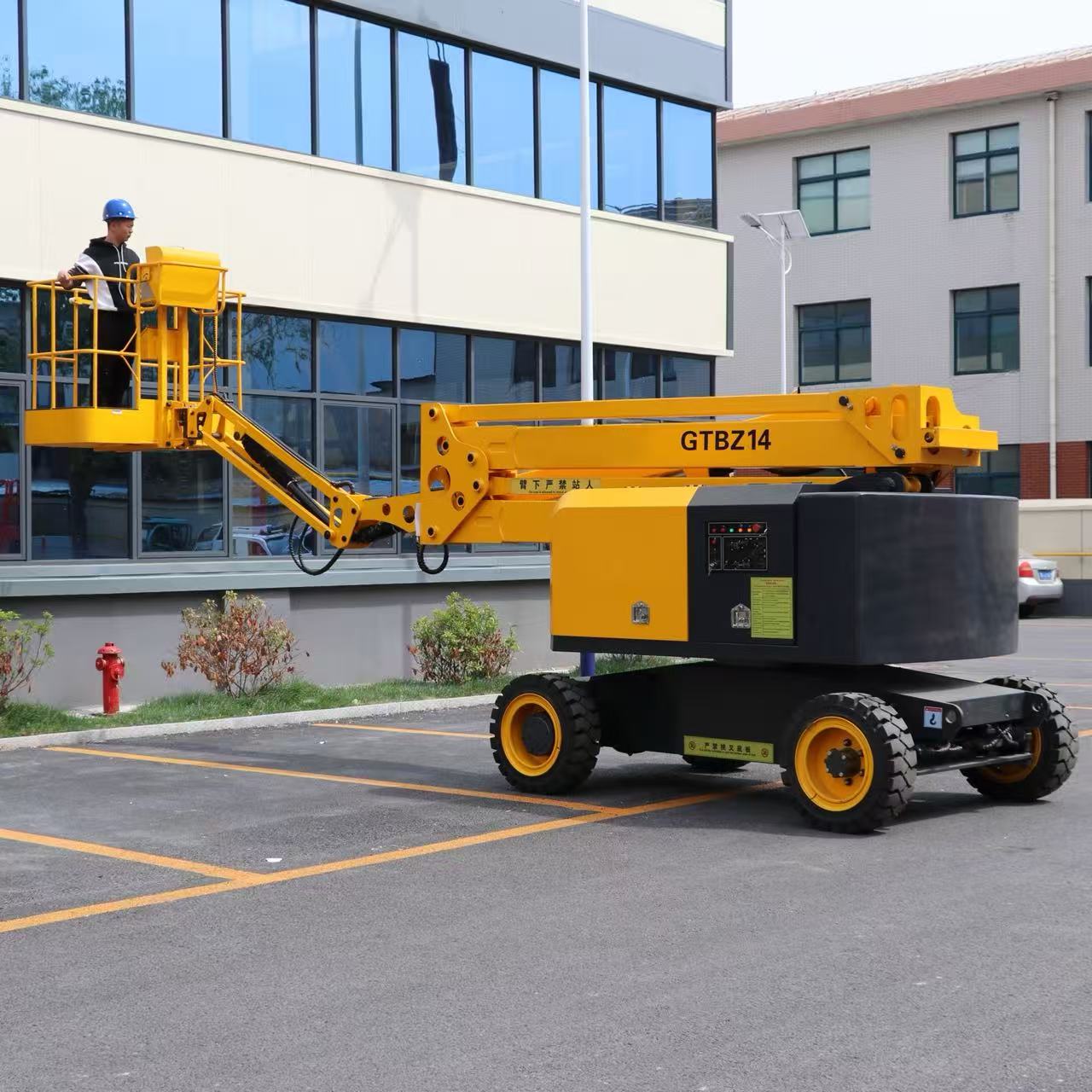

Detail illustration
