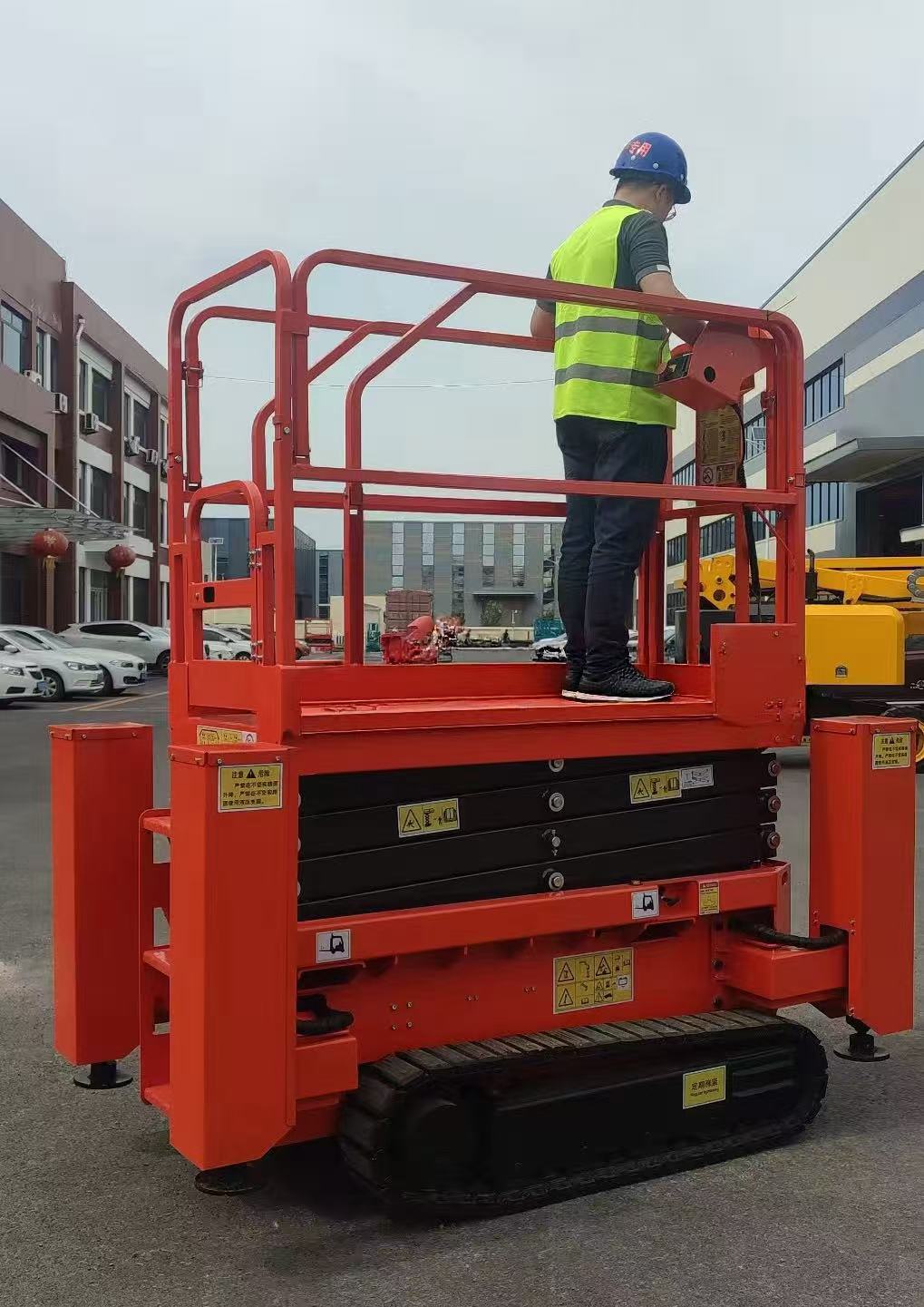

The steel-tracked scissor lift platform is powered by a high-performance motor, delivering robust power and excellent off-road capability, enabling smooth operation even on muddy and uneven terrain. Equipped with one-touch leveling legs, it ensures stable lifting on sloped surfaces. The steel-tracked chassis enhance stability, durability, and load-bearing capacity while minimizing noise and preventing damage to asphalt surfaces, ensuring superior driving performance.
Designed for rugged outdoor terrains and complex construction environments, this crawler-type electric hydraulic lift excels in adaptability, operating efficiently in off-grid or challenging conditions. It features built-in maintenance-free lead-acid batteries, eliminating the need for external power and enabling effortless slope climbing. Constructed from premium thickened steel for enhanced structural strength, the platform includes overload and tilt protection systems for added safety and reliability. Dual controls (upper and lower) allow operators to manage lifting, movement, and steering from the platform. The electroplated paint finish employs electrophoresis technology, ensuring uniform coating coverage—including hard-to-reach areas like inner cavities, welds, and edges—significantly boosting corrosion resistance. This durable, fade-resistant finish extends product lifespan and elevates its premium quality.
Parameter | ||
Ltem | unit | HWZTLD-GTJZ06 |
Size | ||
Work platform size(length×wide×high) | mm | 2270×1120×1130 |
Overall dimensions of the machine(A×B×C) | mm | 2675×1710×2330 |
Overall dimensions (length×wide×high,guardrail folded) | mm | 2675×1710×1755 |
Table extension size G | mm | 900 |
Performance | ||
Maximum working height | m | 8.00 |
Maximum platform height H | m | 6.00 |
Safe working load | kg | 500 |
Extended Platform safe working load | kg | 110 |
Minimum ground clearance | mm | 150 |
Track width | mm | 230 |
Traveling motor |
| 2×4kw/DC48V |
Lifting motor |
| DC48V/4.5kw |
Lifting speed | m/min | 9-10 |
Machine driving speed | Km/h | 3.5 |
Battery |
| Lead acid maintenance free 8×6V/200ah |
Charger | V/A | 48/30 |
Max Climb Capability | % | 30 |
Maximum allowable working angle | 。 | 1.5/3 |
Maximum leveling angle |
| Directions6.5°broadwise12° |
Number of legs | branch | 4 |
Overall weight | kg | 2850 |


Proportional | Automatic brake system | Charging protection system |
Tilt Protection system | Emergency descent system | Folding fence |
Steel rubber track | Platform self-locking door | Emergency stop button |
Standard transport forklift | Unidirectional extension platform | horn |
Fault diagnosis | One click leveling | Safety maintenance support rod |
Action buzzing | Turning in place | Strobe light |
Oil pipe explosion-proof system
|
|
|
