The straight-arm aerial lift series is available in diesel engine and AC electric power options. Equipped with different power sources, these products are adaptable to various complex indoor and outdoor terrains. The equipment features full-height mobility, extended boom lifting, and 360° continuous turntable rotation. Combined with efficient geometric design and an extended outreach radius, it bypasses obstacles for multi-point operations with flexible handling and high efficiency. The off-road solid tires resist deformation, require no maintenance, and offer long service life, making them ideal tools for maintenance, welding, installation, construction, trimming, and other aerial tasks.
Project | HWGTBZ26.8 |
Maximum working height | 28.8m |
Maximum platform height | 26.8m |

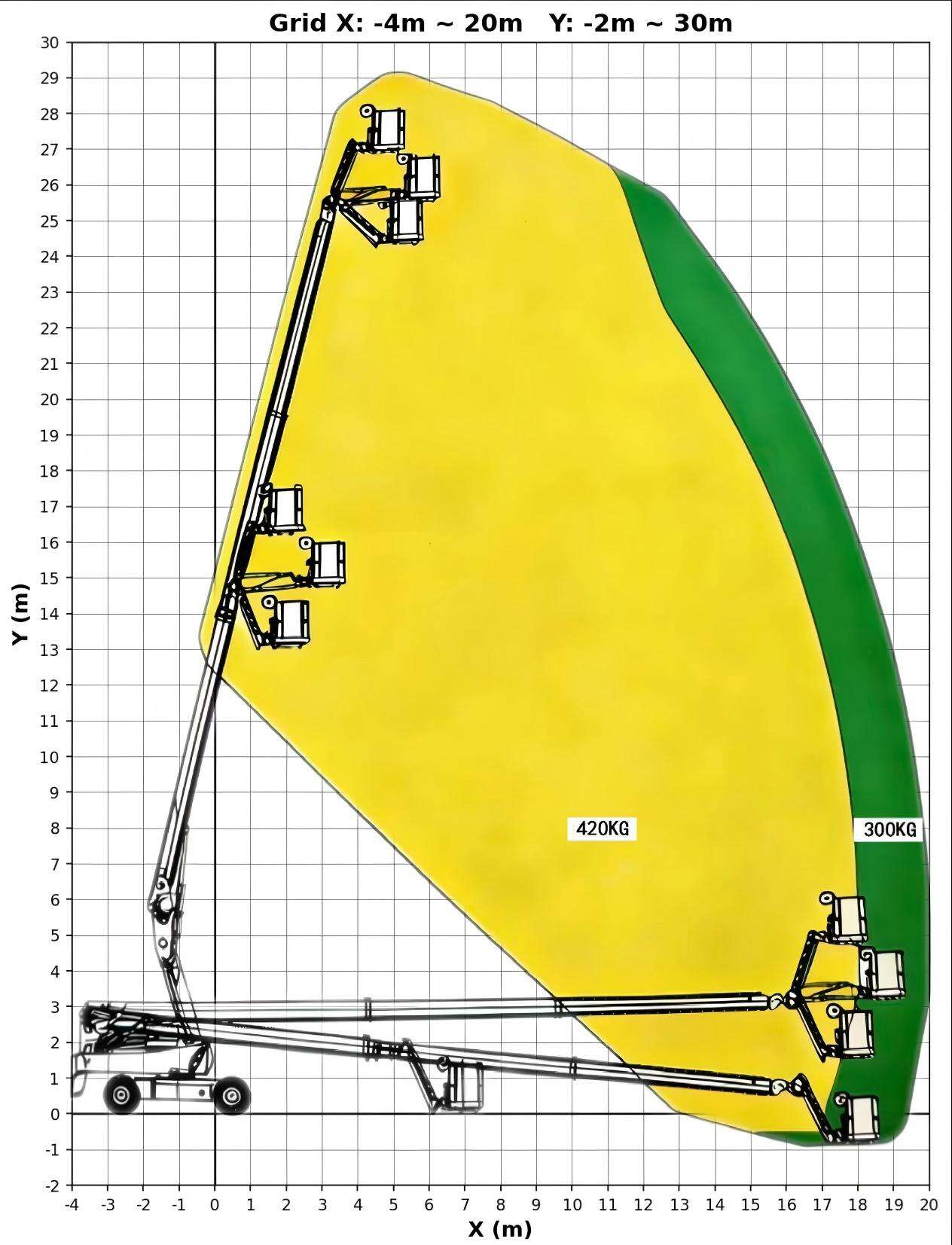

Maximum homework radius | 22m |
Maximum crossing height | 5.6m |
Maximum load capacity | 300kg |
Driver type | 4×4×2electric wheel drive |
Diesel engine model | 490 36KW |
Workbench size | 2.45×0.9m×1150 |
Maximum external dimensions | 11.69×2.52×2.92m |
The height of the workbench from the ground after contraction | 420mm |
Wheelbase | 3200mm |
Track width | 2510mm |
Number of large arms | 3sections |
Big arm deflection | ≤0.5% |
Flying arm amplitude range | -60°/+70° |
Walking speed(in the closed state) | 5km/h |
Walking speed(elevated state) | ＜0.8km/h |
Maximum allowable angle of chassis | 1.5°/5° |
Rotation angle of turntable | 360°continuous |
Climbing ability | 45% |
Drive steering form | Four wheel drive front wheel steering |
Minimum turning radius | Outer wheel6.5m,inner wheel3.5m |
Platform rotation angle(optional function) | ±80° |
Control Voltage | 24V |
Tyre | 33×12D610 Filled tire |
Hydraulic oil tank capacity | 110L |
Equipment self weight | 15340kg |
Lithium battery | wheel side wise | 360°discontinuous rotation |
Fault diagnosis system | Emergency stop system | Emergency descent system |
Platform rotation angle±90° | Horn and buzzer safety warnings | Maximum allowable working inclination angle of5°
|
Hydraulic leveling work platform | Emergency brake release | Tilt protection system |
